Durkopp Adler Sewing Machine

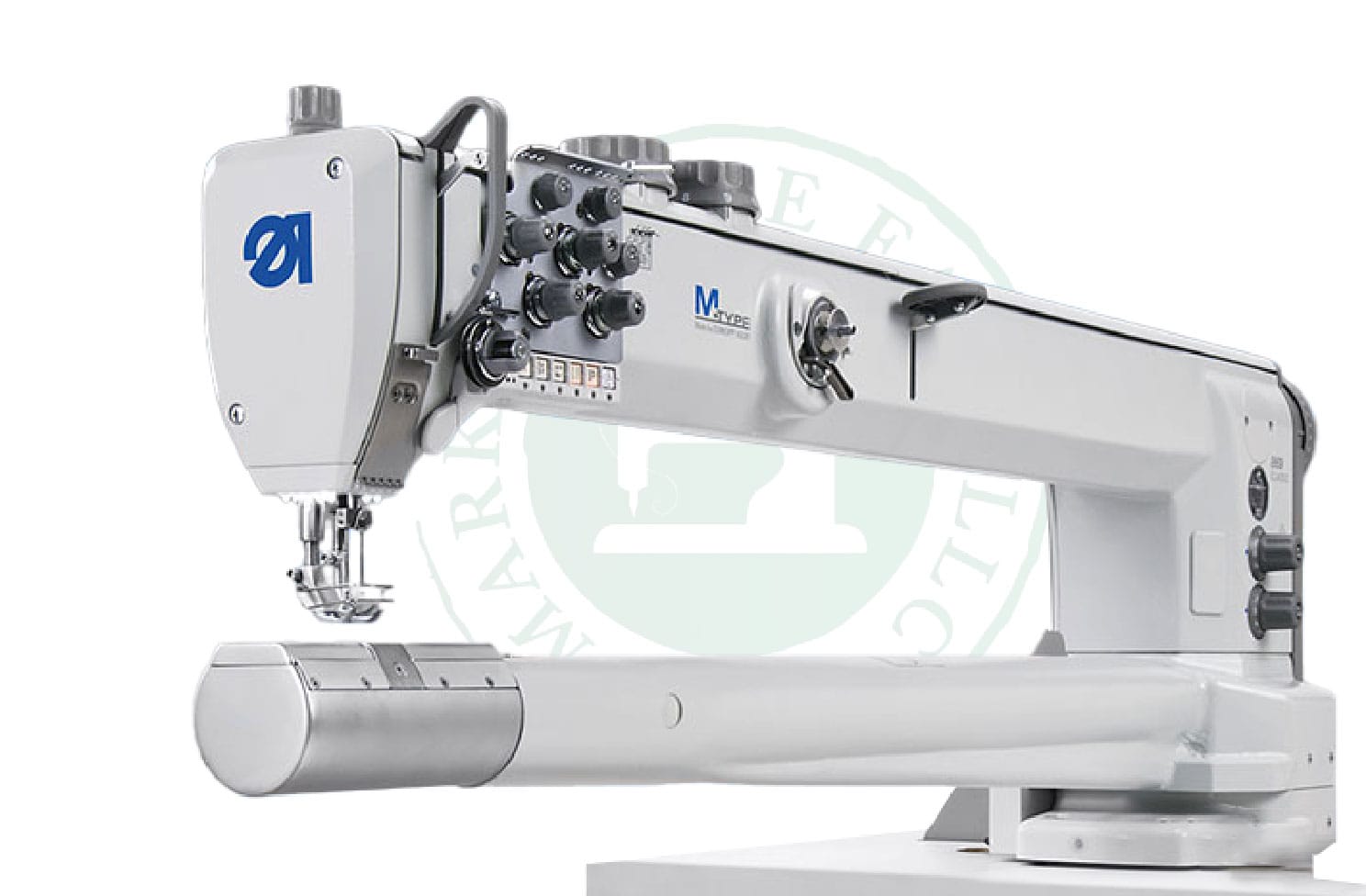

Durkopp Adler 869-280322-100
- Model
- 869-280322-100
- Application
- Special machine for filter industry
- Clearance under Sewing Head
- 1,000 mm
- Free Arm Diameter
- 78 mm at sewing point
Tell us the material and application. It helps us confirm the right setup.
Specialized Free Arm Sewing Machine for the Filter Industry
The Durkopp Adler 869-280322-100 is specifically engineered for demanding filter manufacturing applications, particularly for tubular workpieces such as bag filters and long hose filters. With an extended 1,000 mm clearance under the sewing arm, this machine is ideal for processing lengthy tubular materials — including the attachment of metal rings on filters up to 10 meters in length. This model is part of the M-TYPE CLASSIC series and offers a powerful combination of performance, durability, and value.
Typical Applications
- Attaching metal rings to tubular filters
- Manufacturing of bag filters and hose filters up to 10 meters long
- Other specialized industrial filtration sewing processes
Specifications
Feature | Details |
|---|---|
Model | 869-280322-100 |
Application | Special machine for filter industry |
Clearance under Sewing Head | 1,000 mm |
Free Arm Diameter | 78 mm at sewing point |
Sewing Capability | Ideal for tubular workpieces and hose filters up to 10 meters |
Automatic Thread Trimmer | Included, reduces thread waste |
Pneumatic Sewing Foot Lift | Yes |
Automatic Backtacking | Yes |
Quick Stroke Adjustment | Included |
Integrated Second Stitch Length | Yes |
Additional Thread Tension | Pneumatic control |
Series | M-TYPE CLASSIC |
